Using the Engine Standalone

It is possible to build applications on the PlayCanvas Engine without using the Editor. Some examples of applications built directly against the Engine are:

This page guides you in how to get started.

note

Before you begin, ensure you have Node.js installed.

Quick start

For a Vite and TypeScript project, use the official create-playcanvas tool and choose the Engine format:

npm create playcanvas@latest my-app -- -f engine

The generated project includes a runnable starter and PlayCanvas Skills for compatible AI coding agents.

When setting up your project, there are two main options to consider.

Option 1: Build Tool and NPM​

This is the recommended set up that should suit most developers.

A build tool can bundle your application into an optimized package that can run on a wide range of browsers. There are many build tools such as webpack, Rollup and esbuild, and PlayCanvas will work with all of them. Here, we will use Vite, a popular build tool that aims to provide a faster and leaner development experience for modern web projects.

First, select whether you prefer to develop in JavaScript or TypeScript:

  1. Open a Terminal/Command Prompt, create a folder for your app and cd inside it.

  2. Install playcanvas and vite:

    npm install playcanvas
    npm install vite --save-dev

  3. Create an index.html and paste this:

    index.html
    <!DOCTYPE html>
    <html lang="en">
        <head>
            <meta charset="utf-8">
            <style>
                body { margin: 0; overflow: hidden; }
            </style>
        </head>
        <body>
            <script type="module" src="main.js"></script>
            <canvas id='application'></canvas>
        </body>
    </html>

  4. Create a main.js and paste this:

    main.js
    import * as pc from 'playcanvas';

    // create a graphics device, preferring WebGPU over WebGL 2.0
    const canvas = document.getElementById('application');
    const device = await pc.createGraphicsDevice(canvas, {
        deviceTypes: [pc.DEVICETYPE_WEBGPU]
    });

    // create an application with the systems and handlers it uses
    const options = new pc.AppOptions();
    options.graphicsDevice = device;
    options.componentSystems = [
        pc.RenderComponentSystem,
        pc.CameraComponentSystem,
        pc.LightComponentSystem
    ];
    options.resourceHandlers = [
        pc.TextureHandler,
        pc.ContainerHandler
    ];

    const app = new pc.AppBase(canvas);
    app.init(options);
    app.setCanvasResolution(pc.RESOLUTION_AUTO);
    app.setCanvasFillMode(pc.FILLMODE_FILL_WINDOW);
    app.start();

    // resize the canvas when the window is resized
    window.addEventListener('resize', () => app.resizeCanvas());

    // create a camera
    const camera = new pc.Entity();
    camera.addComponent('camera', {
        clearColor: new pc.Color(0.3, 0.3, 0.7)
    });
    camera.setPosition(0, 0, 3);
    app.root.addChild(camera);

    // create a light
    const light = new pc.Entity();
    light.addComponent('light');
    light.setEulerAngles(45, 45, 0);
    app.root.addChild(light);

    // create a box
    const box = new pc.Entity();
    box.addComponent('render', {
        type: 'box'
    });
    app.root.addChild(box);

    // rotate the box
    app.on('update', (dt) => box.rotate(10 * dt, 20 * dt, 30 * dt));

  5. Run the Vite development server:

    npx vite

    This starts a server at http://localhost:5173. Visit this URL in your browser and you will see the following:

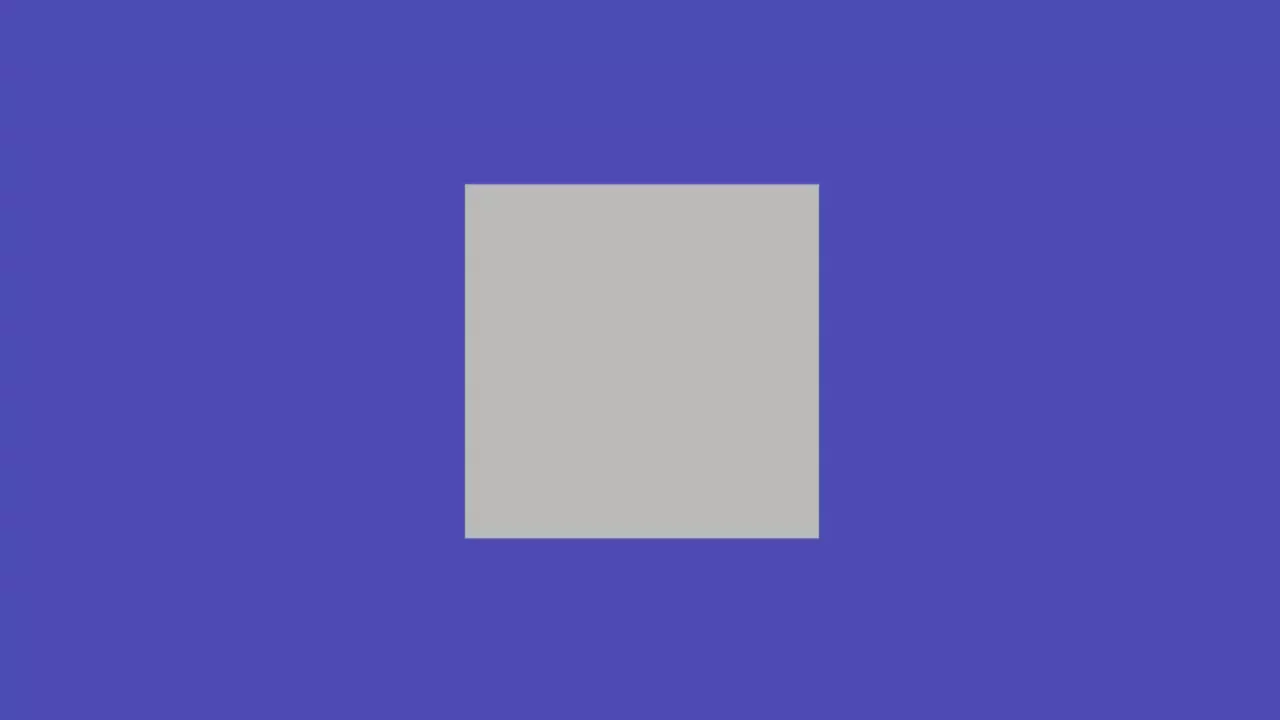

    Spinning Cube

    tip

    Every time you save your source files, the tab will reload automatically.

Option 2: Import Map and CDN​

An import map can resolve module specifiers in JavaScript modules. Consider this import statement:

import * as pc from 'playcanvas';

An import map can resolve playcanvas to a CDN-hosted build of the engine that can be dynamically loaded by the browser. This means that we can skip the build step described in Option 1.

First, select whether you prefer to develop in JavaScript or TypeScript:

  1. Open a Terminal/Command Prompt, create a folder for your app and cd inside it.

  2. Create an index.html and paste this:

    index.html
    <!DOCTYPE html>
    <html lang="en">
        <head>
            <meta charset="utf-8">
            <style>
                body { margin: 0; overflow: hidden; }
            </style>
            <script type="importmap">
            {
                "imports": {
                    "playcanvas": "https://cdn.jsdelivr.net/npm/playcanvas/+esm"
                }
            }
            </script>
        </head>
        <body>
            <script type="module" src="main.js"></script>
            <canvas id='application'></canvas>
        </body>
    </html>

  3. Create a main.js and paste this:

    main.js
    import * as pc from 'playcanvas';

    // create a graphics device, preferring WebGPU over WebGL 2.0
    const canvas = document.getElementById('application');
    const device = await pc.createGraphicsDevice(canvas, {
        deviceTypes: [pc.DEVICETYPE_WEBGPU]
    });

    // create an application with the systems and handlers it uses
    const options = new pc.AppOptions();
    options.graphicsDevice = device;
    options.componentSystems = [
        pc.RenderComponentSystem,
        pc.CameraComponentSystem,
        pc.LightComponentSystem
    ];
    options.resourceHandlers = [
        pc.TextureHandler,
        pc.ContainerHandler
    ];

    const app = new pc.AppBase(canvas);
    app.init(options);
    app.setCanvasResolution(pc.RESOLUTION_AUTO);
    app.setCanvasFillMode(pc.FILLMODE_FILL_WINDOW);
    app.start();

    // resize the canvas when the window is resized
    window.addEventListener('resize', () => app.resizeCanvas());

    // create a camera
    const camera = new pc.Entity();
    camera.addComponent('camera', {
        clearColor: new pc.Color(0.3, 0.3, 0.7)
    });
    camera.setPosition(0, 0, 3);
    app.root.addChild(camera);

    // create a light
    const light = new pc.Entity();
    light.addComponent('light');
    light.setEulerAngles(45, 45, 0);
    app.root.addChild(light);

    // create a box
    const box = new pc.Entity();
    box.addComponent('render', {
        type: 'box'
    });
    app.root.addChild(box);

    // rotate the box
    app.on('update', (dt) => box.rotate(10 * dt, 20 * dt, 30 * dt));

  4. Run serve:

    npx serve

    This starts a server at http://localhost:3000. Visit this URL in your browser and you will see the following:

    Spinning Cube

Configuring the Application​

The samples create the application in two steps:

  1. createGraphicsDevice creates the graphics device. Listing DEVICETYPE_WEBGPU in deviceTypes requests WebGPU, and the Engine falls back to WebGL 2.0 when WebGPU isn't available.
  2. AppBase is initialized with an AppOptions object that lists the component systems and resource handlers the application uses. Because nothing else is registered, a build tool can leave the rest out of your bundle.

As your application grows, register what it needs:

  • Components: Each component type needs its component system. For example, add pc.ScriptComponentSystem to use the script component. The Application constructor lists every component type with its system. If a system is missing, addComponent returns null, and the debug build of the Engine logs an error.
  • Assets: Each asset type needs its resource handler. The samples register pc.TextureHandler for textures and pc.ContainerHandler for GLB models.
  • Other features: Sound, batching, lightmapping and XR are enabled with further AppOptions properties. For example, the sound component also needs options.soundManager = new pc.SoundManager().
note

The Application class sets all of this up for you. However, its constructor can't create a WebGPU device, it adds every component system and resource handler to your bundle, and it is expected to be deprecated in a future release.
